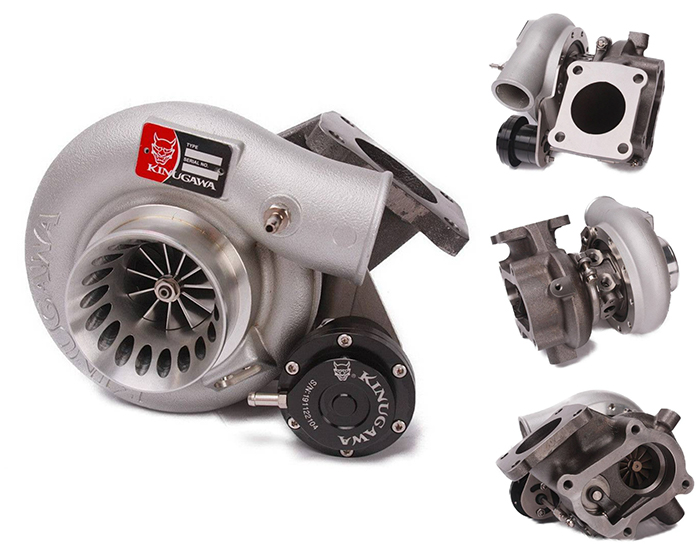

These Kinugawa Japan turbos are designed as a bolt on upgrade for the CT26 as used on the 7MGTE Toyota Supra. The turbo supports up to around 470hp at the fly and is a bolt on replacement for the stock CT26.
Specifications:
* Compressor wheel: 49.6 / 68 mm 7+7 Point Milling Billet which utilizes latest generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 40lb/min.
* Compressor inlet: 3.0″
* Compressor outlet: 2.0
* Turbine wheel: STS55 wheel: 56.0 / 49.2 mm (The STS (Superior Turbine Strike) turbine wheel takes 5-8% less time to build boost and at higher RPM prevents choking. Less restrictive than the 11 or 12 blade turbines. This is the best (top of the line) turbine wheel spec.
* Turbine housing A/R 7cm .49
* Journal Bearing with performance 360-degree thrust bearing kit.
* Oil and water cooled
* Actuator Pressure 1 Bar / 15 psi default (you can select pressure when ordering).
* Supplied with fitting kit
