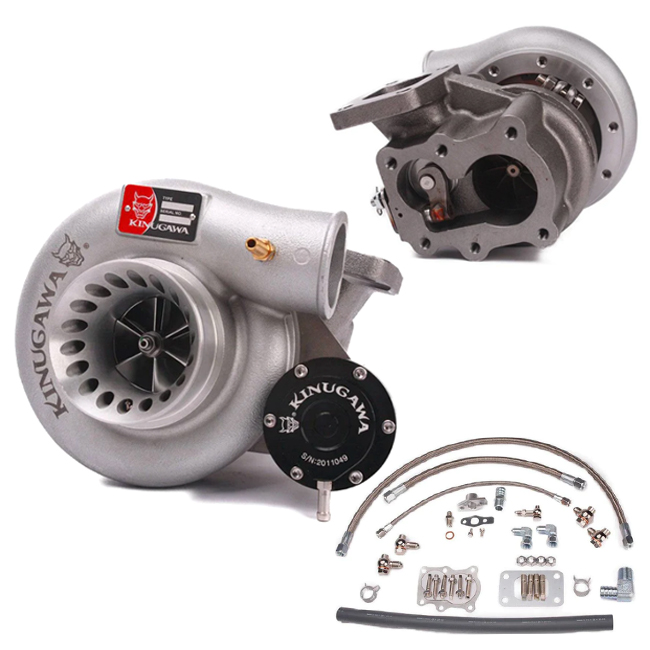

These Kinugawa TD05-18g turbos include a complete new turbo plus fitting kit. This is a quick spool upgrade for the Nissan TD42 motors.
Specifications:
* Suit Nissan Safari / Patrol Diesel TD42
* Turbine Housing 6cm AR41 single scroll T3 flange quick spool turbine housing with factory TD42 6 bolt rear
* Compressor wheel: 50.3 mm / 68 mm
* Compressor housing A/R 60 3″ inlet / 2″ outlet (antisurge is default option)
* Turbine Wheel: 49.1 / 56mm ( TD05H Turbine wheel)
* Journal Bearing with performance thrust bearing kit with larger thrust ring and flinger
* Oil and Water-Cooled
* Actuator Pressure 1 Bar / 15 psi (easily rotatable)
* Max supported HP 300~430HP
* Boost Limit 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
* Fitting Kit Included (GU Y61). There is also a GQ GY (Y60) kit option available – please ask!
